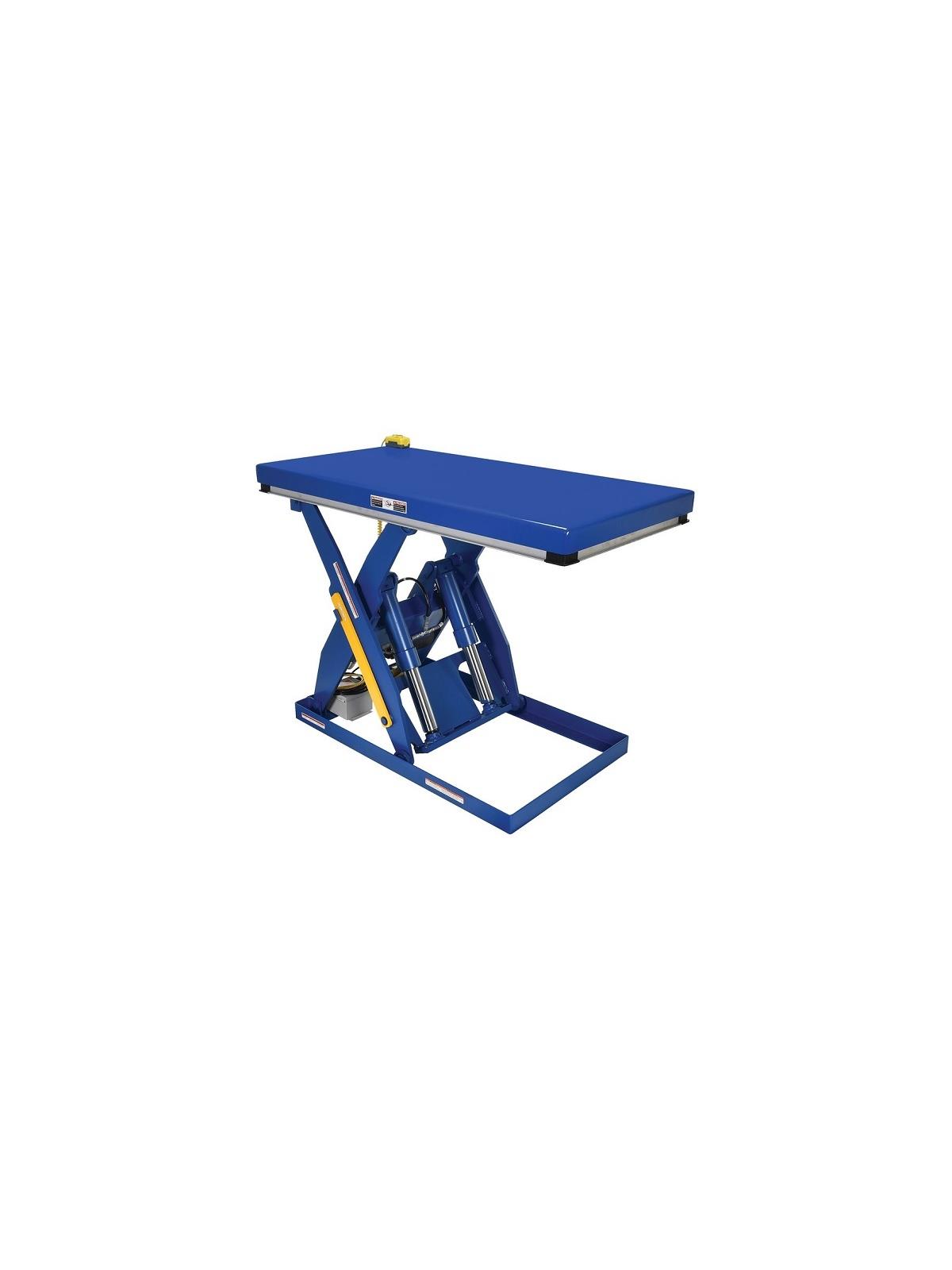

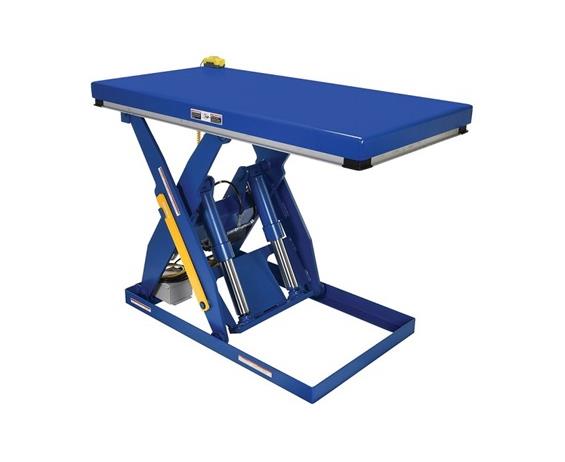

Scissor Tables

• Lifts machinery, parts, work in process material, etc., easily and smoothly thanks to durable, hydraulic components.
• State-of-the-art bushings keep wear to a minimum.
• Other sizes and capacities available.

Hardened pins reduce wear. Strong chrome-plated piston cylinders resist rust and corrosion. Cylinder is honed hydraulic tubing. Safety toe guard automatically stops platform if lift comes down on toe or other objects - meets OSHA requirements. Emergency lockup automatically locks platform if hydraulic pressure is inadvertently lost.  FOB Shipping Point.

SAFETY FEATURES:

• Electric Toe/Pinch Point Guard
• Emergency Stop if Hose Breaks
• Fused Push Button Hand Control
• Integral Safety Maintenance Props
• Meets OSHA Requirements

Additional Features:

• Internal 56 Frame 2 HP Motor (standard) helps to insure maximum life and efficiency.
• Hand Control on 2-8 Ft. Coil Cord. Fused 24 VAC Control Voltage.
• Adjustable Upward Travel Limit Switch.
• Patented Pinch Point Guard complies with ANSI MH.29.1-1994 and OSHA section 1910.2.2(a)(3)(ii).

Note: Standard power is 460V, 3-phase, 2HP integral power unit (HEHLT-3672-8-43 features 6.5HP, 460V 3-phase external power unit) - call for other voltage options. Quickship 1 week lead time.
