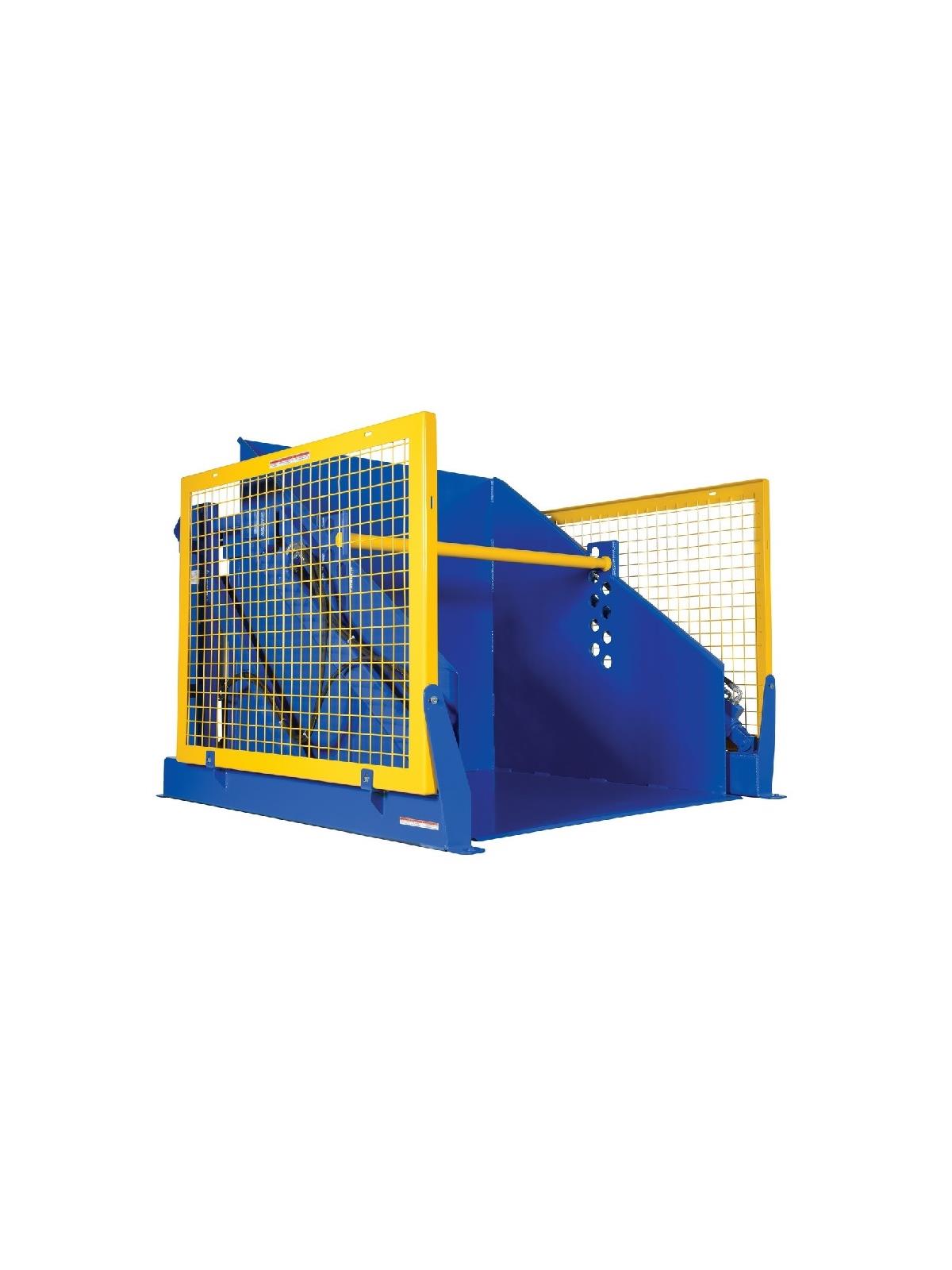

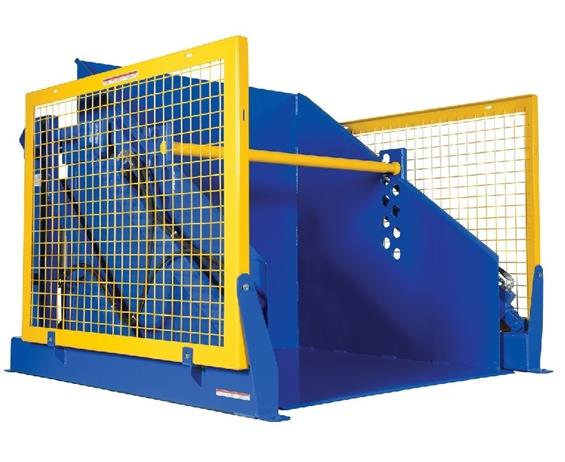

Hydraulic Basket/Box Dumper

  • The next generation of dumpers to revolutionize the industry.

This ultimate dumper has advanced features from solid all welded steel construction to the Emergency Brass Velocity fuse in the cylinder. Main components include a 24V hand held pendant control, 56 frame motor, upper travel limit switch to reduce wear on the components. Safety features include: side rail guards, floor hold down brackets, adjustable hold down bar, 3,000 psi hydraulic component rating, integrated brass velocity fuse mounted inside the cylinder. Maximum rotation is 135°, yielding a 45° dump angle. Painted Royal Blue. FOB Shipping Point.

Other voltage options available, contact us for details.

Due to tariffs and market conditions, pricing subject to change.





Product No. HHBD-6-48
Cap. (lbs.) 6000
Dump
Height
48"
Reach 10"
Level
Height
66"
Usable Chute
W x L
52 x 50"
Rotated
Height
129-1/2"
Overall
W x L
69 x 68-1/2"
Power 3 Phase/460V
Wt. (lbs.) 21472147
