HIGH VELOCITY AIR CIRCULATORS
ZOOM IN

Alternative Views
  • There are no alternate images available for this product.

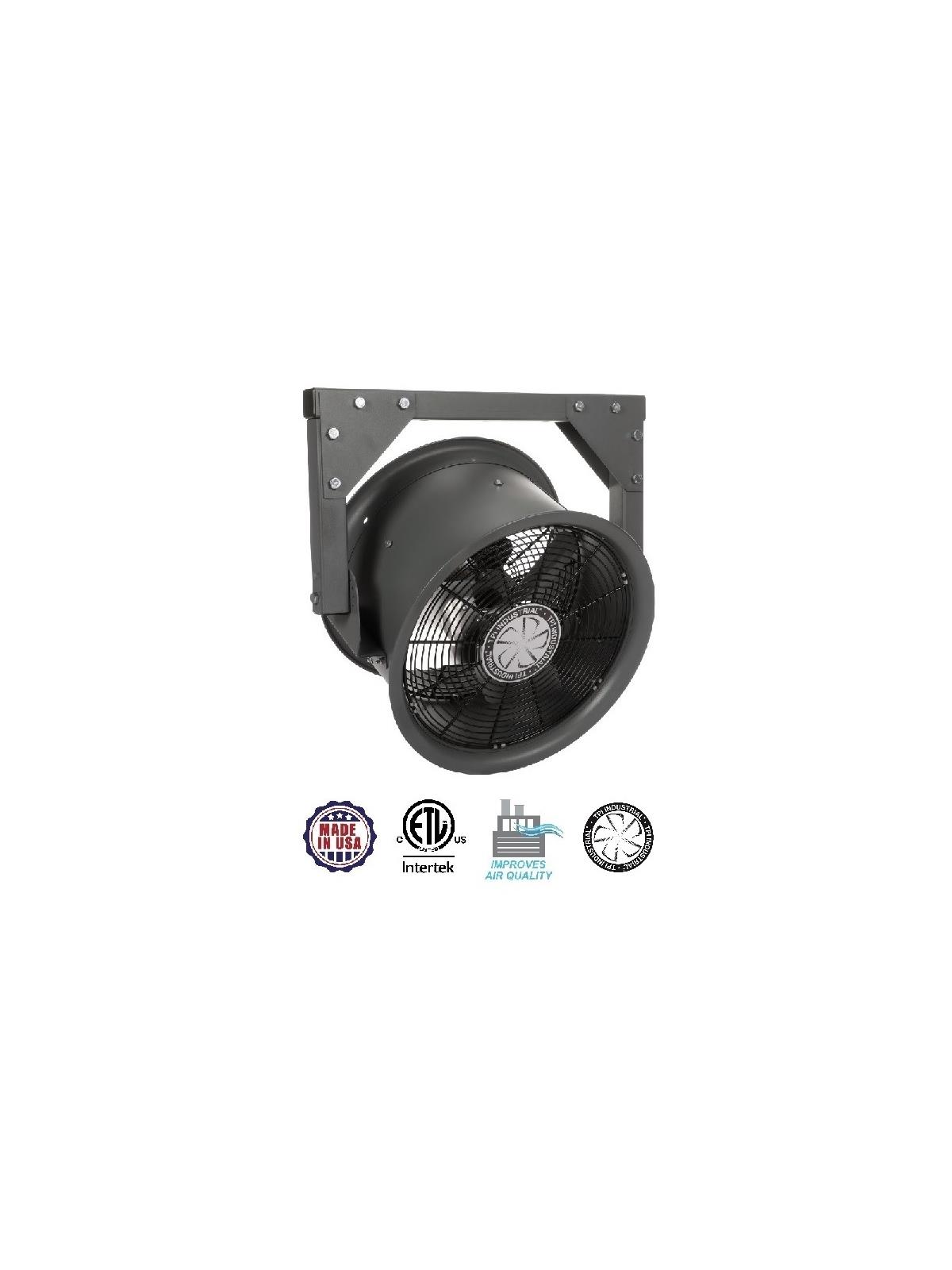

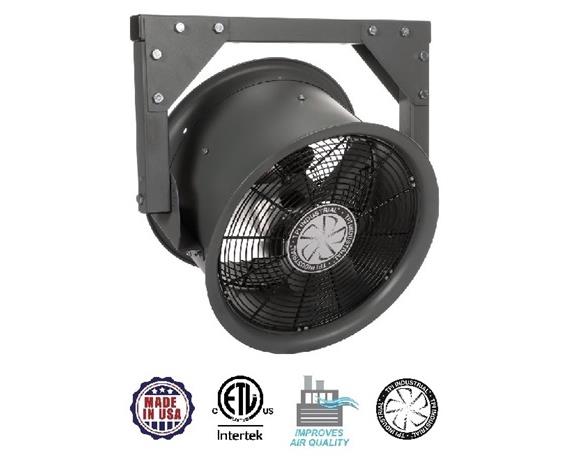

High Velocity Air Circulators

  • All steel construction.
  • Fully enclosed motor.
  • 18", 24" & 30" model sizes.
  • Heavy-duty yoke mounted fan head.
  • Great for use in warehouses and loading dock areas.

Housing designed for all types of air circulating applications to provide directional - high velocity air flow. Built-in rotating design allows the supplied mounting bracket to pivot 120 degrees in (9) adjustment setting at 15 degree variations. Front and rear spiral wound grills are OSHA approved and have a black coated finish. All units are shipped fully assembled and ready for hard-wired connections. TEAO motor has a Class B rating, with automatic thermal protection and ball bearing design for harsh environments; rated up to 115 degrees Fahrenheit maximum ambient temperature. Single and three phase options available in 120, 208/240, 277 and 480-volt. Mounting brackets sold separately. FOB Shipping Point.

See Related Items tab for High Velocity Air Circulators - Mounting Brackets.




There are related items or accessories for this product. Please see the Related Items tab below.


Product No. Description Volts Phase CFM/RPM Size
H x W x D
Amps Wt. (lbs.) Qty Price Ea.
HHV18-120V 18" 1/2HP 373 Watts 120 1 5000/1725 25-7/8 x 23-3/8 x 13-1/2" 5.0 45 $1,346.27
HHV18-208/240V 18" 1/2 HP 373 Watts 208/240 1 2000/1725 25-7/8 x 23-3/8 x 13-1/2" 2.6 45 $1,346.27
HHV18-277V 18" 1/2 HP 373 Watts 277 1 5000/1725 25-7/8 x 23-3/8 x 13-1/2" 2.1 45 $1,346.27
HHV18-480V 18" 1/2 HP 373 Watts 480 1 5000/1725 25-7/8 x 23-3/8 x 13-1/2" 1.3 45 $1,346.27
HHV18-480V-3 18" 1/2 HP 373 Watts 480 3 5000/1725 25-7/8 x 23-3/8 x 13-1/2" 1.0 45 $1,543.24
HHV24-120V 24" 1/2 HP 373 Watts 120 1 8500/1725 30-1/4 x 33-1/4 x 13-1/2" 5.0 58 $1,542.46
HHV24-208/240V 24" 1/2 HP 373 Watts 208/240 1 8500/1725 30-1/4 x 33-1/4 x 13-1/2" 2.6 58 $1,542.46
HHV24-277V 24" 1/2 HP 373 Watts 277 1 8500/1725 30-1/4 x 33-1/4 x 13-1/2" 2.1 58 $1,542.46
HHV24-480V 24" 1/2 HP 373 Watts 480 1 8500/1725 30-1/4 x 33-1/4 x 13-1/2" 1.3 58 $1,542.46
HHV24-480V-3 24" 1/2 HP 373 Watts 480 3 8500/1725 30-1/4 x 33-1/4" x 13-1/2" 1.0 58 $1,865.31
HHV30-120V 30" 1 HP 746 Watts 120 1 14250/1700 38-7/8 x 38-7/8 x 16" 10.0 85 $2,229.12
HHV30-208/240V 30" 1 HP 746 Watts 208/240 1 14250/1700 38-7/8 x 38-7/8 x 16" 4.7 85 $2,229.12
HHV30-277V 30" 1 HP 746 Watts 277 1 14250/1700 38-7/8 x 38-7/8 x 16" 3.6 85 $2,229.12
HHV30-480V 30" 1 HP 746 Watts 480 1 14250/1700 38-7/8 x 38-7/8 x 16" 2.1 85 $2,229.12
HHV30-480V-3 30" 1 HP 746 Watts 480 3 14250/1700 38-7/8 x 38-7/8 x 16" 1.7 85 $2,734.25
