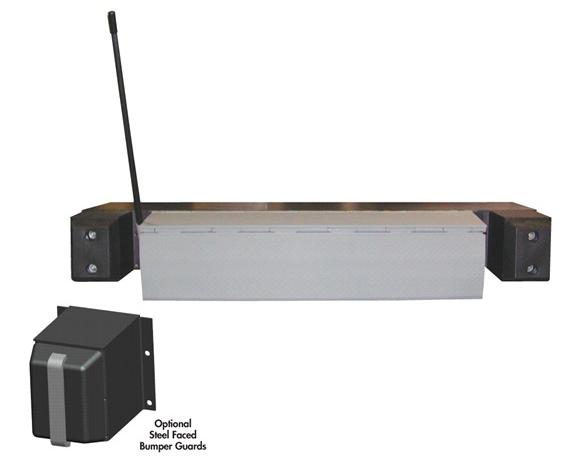

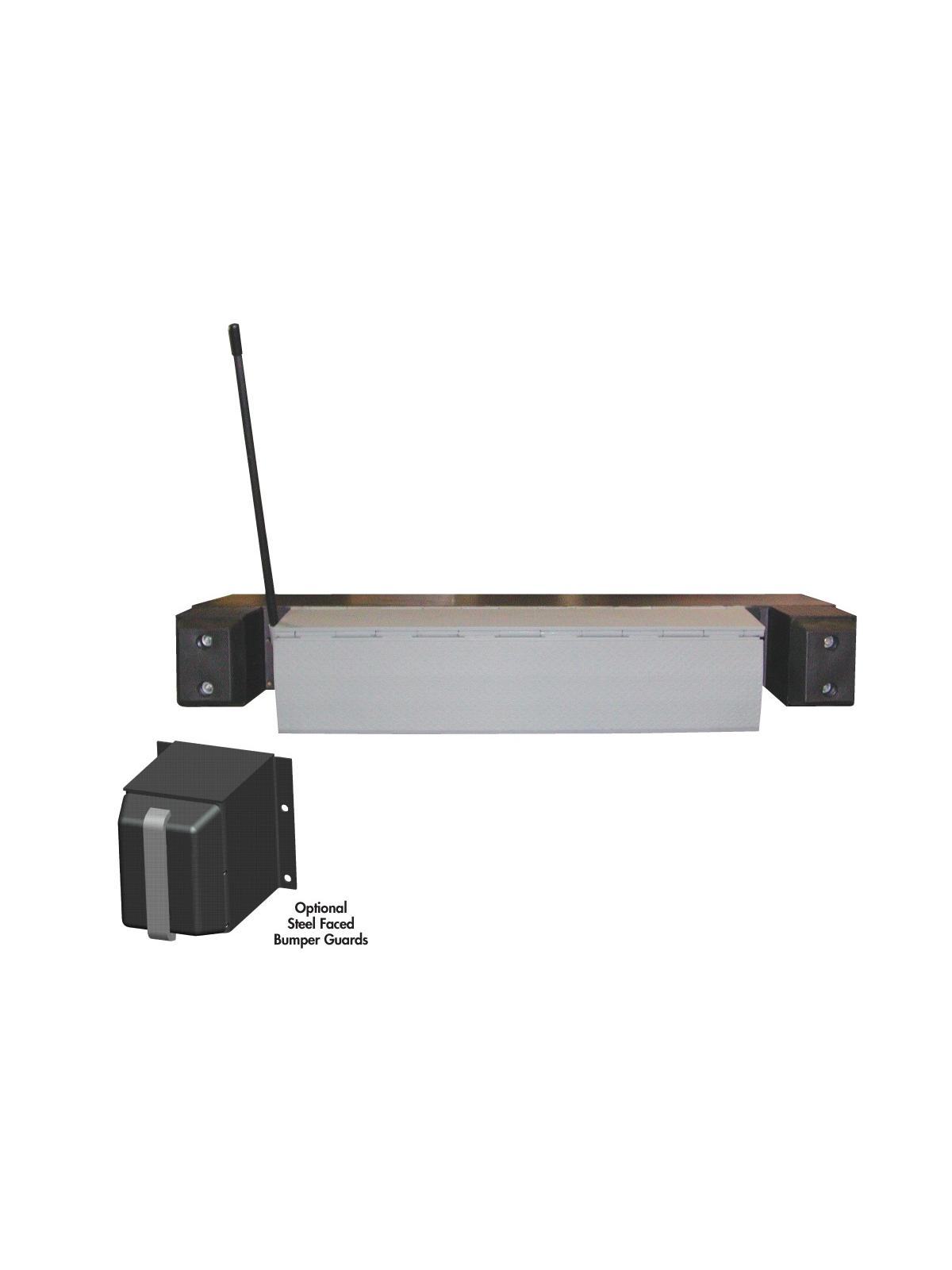

Edge-Of-Dock Levelers

Smooth and easy to operate with handle or optional wall mounted push button.
Exclusive lift mechanism and spring assembly sets the board in place with 1/4 the effort of a conventional edge-of-dock.

Add 30" to plate width for overall width. Standard price includes molded rubber bumpers and steel blocks. FOB Shipping Point.

All products listed are subject to a surcharge. Please call for current price.

Available Options:
Steel Bumper Guard
Longer Lip for refrigerated trucks (16" lip length)
Hydraulic Power Unit (single phase 115 volt)

Product No.	Cap. (lbs.)	Plate Width	Bumper Guard	Lip	Power	Wt. (lbs.)	Price Ea.
HSEL2066CG	20000	66"	Rubber	Standard	Standard	490	$1,448.00
HSEL2072CG	20000	72"	Rubber	Standard	Standard	505	$1,524.00
HSEL3066CG	30000	66"	Rubber	Standard	Standard	524	$1,580.00
HSEL3072CG	30000	72"	Rubber	Standard	Standard	563	$1,664.00
HSEL3078CG	30000	78"	Rubber	Standard	Standard	598	$1,964.00
HSEL3084CG	30000	84"	Rubber	Standard	Standard	625	$2,136.00
HSEL2066CG-SBG	20000	66"	Steel	Standard	Standard	490	$1,548.00
HSEL2072CG-SBG	20000	72"	Steel	Standard	Standard	505	$1,624.00
HSEL3066CG-SBG	30000	66"	Steel	Standard	Standard	524	$1,680.00
HSEL3072CG-SBG	30000	72"	Steel	Standard	Standard	563	$1,764.00
HSEL3078CG-SBG	30000	78"	Steel	Standard	Standard	598	$2,064.00
HSEL3084CG-SBG	30000	84"	Steel	Standard	Standard	625	$2,236.00
HSEL2066CG-LL	20000	66"	Rubber	Longer for Refrigerated Trucks	Standard	490	$1,548.00
HSEL2072CG-LL	20000	72"	Rubber	Longer for Refrigerated Trucks	Standard	505	$1,624.00
HSEL3066CG-LL	30000	66"	Rubber	Longer for Refrigerated Trucks	Standard	524	$1,680.00
HSEL3072CG-LL	30000	72"	Rubber	Longer for Refrigerated Trucks	Standard	563	$1,764.00
HSEL3078CG-LL	30000	78"	Rubber	Longer for Refrigerated Trucks	Standard	598	$2,064.00
HSEL3084CG-LL	30000	84"	Rubber	Longer for Refrigerated Trucks	Standard	625	$2,236.00
HSEL2066CG-HP	20000	66"	Rubber	Standard	Hydraulic	490	$3,531.00
HSEL2072CG-HP	20000	72"	Rubber	Standard	Hydraulic	505	$3,607.00
HSEL3066CG-HP	30000	66"	Rubber	Standard	Hydraulic	524	$3,663.00
HSEL3072CG-HP	30000	72"	Rubber	Standard	Hydraulic	563	$3,747.00
HSEL3078CG-HP	30000	78"	Rubber	Standard	Hydraulic	598	$4,047.00
HSEL3084CG-HP	30000	84"	Rubber	Standard	Hydraulic	625	$4,219.00
HSEL2066CG-SBG-LL	20000	66"	Steel	Longer for Refrigerated Trucks	Standard	490	$1,648.00
HSEL2072CG-SBG-LL	20000	72"	Steel	Longer for Refrigerated Trucks	Standard	505	$1,724.00
HSEL3066CG-SBG-LL	30000	66"	Steel	Longer for Refrigerated Trucks	Standard	524	$1,780.00
HSEL3072CG-SBG-LL	30000	72"	Steel	Longer for Refrigerated Trucks	Standard	563	$1,864.00
HSEL3078CG-SBG-LL	30000	78"	Steel	Longer for Refrigerated Trucks	Standard	598	$2,164.00
HSEL3084CG-SBG-LL	30000	84"	Steel	Longer for Refrigerated Trucks	Standard	625	$2,336.00
HSEL2066CG-SBG-HP	20000	66"	Steel	Standard	Hydraulic	490	$3,631.00
HSEL2072CG-SBG-HP	20000	72"	Steel	Standard	Hydraulic	505	$3,707.00
HSEL3066CG-SBG-HP	30000	66"	Steel	Standard	Hydraulic	524	$3,763.00
HSEL3072CG-SBG-HP	30000	72"	Steel	Standard	Hydraulic	563	$3,847.00
HSEL3078CG-SBG-HP	30000	78"	Steel	Standard	Hydraulic	598	$4,147.00
HSEL3084CG-SBG-HP	30000	84"	Steel	Standard	Hydraulic	625	$4,319.00
HSEL2066CG-LL-HP	20000	66"	Rubber	Longer for Refrigerated Trucks	Hydraulic	490	$3,631.00
HSEL2072CG-LL-HP	20000	72"	Rubber	Longer for Refrigerated Trucks	Hydraulic	505	$3,707.00
HSEL3066CG-LL-HP	30000	66"	Rubber	Longer for Refrigerated Trucks	Hydraulic	524	$3,763.00
HSEL3072CG-LL-HP	30000	72"	Rubber	Longer for Refrigerated Trucks	Hydraulic	563	$3,847.00
HSEL3078CG-LL-HP	30000	78"	Rubber	Longer for Refrigerated Trucks	Hydraulic	598	$4,147.00
HSEL3084CG-LL-HP	30000	84"	Rubber	Longer for Refrigerated Trucks	Hydraulic	625	$4,319.00
HSEL2066CG-SBG-LL-HP	20000	66"	Steel	Longer for Refrigerated Trucks	Hydraulic	490	$3,731.00
HSEL2072CG-SBG-LL-HP	20000	72"	Steel	Longer for Refrigerated Trucks	Hydraulic	505	$3,807.00
HSEL3066CG-SBG-LL-HP	30000	66"	Steel	Longer for Refrigerated Trucks	Hydraulic	524	$3,863.00
HSEL3072CG-SBG-LL-HP	30000	72"	Steel	Longer for Refrigerated Trucks	Hydraulic	563	$3,947.00
HSEL3078CG-SBG-LL-HP	30000	78"	Steel	Longer for Refrigerated Trucks	Hydraulic	598	$4,247.00
HSEL3084CG-SBG-LL-HP	30000	84"	Steel	Longer for Refrigerated Trucks	Hydraulic	625	$4,419.00
